MultiMix 16 USB 2.0

Integrated USB 2.0 audio interface and mixer

(DISCONTINUED)

High resolution mixer with Multichannel USB 2.0 audio interface

The Alesis MultiMix 16 USB 2.0 mixer provides USB 2.0 technology for ultra–fast, low–latency, 24–bit/44.1–96kHz (with high–end A/D and D/A conversion) multi–channel audio recording straight to your computer.

Designed with low–noise analog electronics, the MultiMix 16 USB 2.0 mixer lets users take advantage of 100 studio–grade 28–bit digital effects. Whether used for mobile or studio recording, the MultiMix 16 USB 2.0 mixer makes recording high–quality audio to your computer fast and easy.

The MultiMix 16 USB 2.0 mixer is also bundled with award–winning Cubase LE software for instant creativity right out of the box.

Features

  • 18 direct outputs to your computer for recording and 2 return inputs for monitoring
  • Eight High–gain mic/line (XLR and 1/4” balanced) inputs with phantom power, 2 stereo balanced 1/4”
  • Four stereo, balanced 1/4" inputs, aux send (to onboard or external effects), stereo aux return
  • Switchable 75Hz high pass filters
  • 100 onboard 28-bit preset effects including reverbs, delays, chorus, flanging, pitch and multi–effects
  • 3–band EQ per channel with high/low shelving and mid band pass/reject
  • Separate 1/4” balanced main and monitor outs, headphone out
  • Smooth 60mm faders
  • 24–bit, 44.1 to 96 kHz operation with high–end A/D and D/A conversion through an integrated USB 2.0 Audio interface
  • Compatible with Mac OS X and Windows XP
  • Steinberg Cubase LE included

Contents

  • USB Cable
  • Software CD
  • User Manual

Requirements

  • MAC: OS X 10.4.1 to 10.11
  • PC: Windows 10 (32 or 64 bit), Windows 8 (32 or 64 bit), Windows 7 (32 or 64 bit), Vista (SP1; 32 or 64 bit), or XP (SP2)
  • USB 2.0 Port

Docs and Downloads

  • MultiMix 16 USB 2.0 - QuickStart Guide Open
  • MultiMix 16 USB 2.0 - Reference Manual Open
  • MultiMix 16 USB 2.0 - Product Overview Open
  • MultiMix Mixers - List of Internal Effects Programs Open
  • Cubase LE - Setup Guide [RevB] Open
  • MultiMix USB 2.0 - Windows Driver v2.9.64 (32 and 64 bit)
    Supports Windows 7, 8, and 10    Download
  • MultiMix USB 2.0 - Windows Vista/XP 32 Bit Drivers [v2.8.12]
    Driver version v2.8.12 - Windows XP and Vista (32 bit only).    Download
  • MultiMix USB 2.0 - Firmware Update for Windows [v1.10]Download
  • MultiMix USB 2.0 - Macintosh Driver [3.3.3]
    OS X EL CAPITAN ONLY
    This update adds compatibility with OS X 10.11 and should not be used for earlier versions.    Download
  • MultiMix USB 2.0 Macintosh Driver [v3.2.0]
    This update adds compatibility with Mac OS X 10.10 Yosemite and 10.9 Mavericks. Users running an earlier version of OS X do not need to install this update.    Download
  • MultiMix USB 2.0 - Macintosh Driver [v2.1.18]
    This update adds compatibility with Mac OS X 10.8 Mountain Lion. Users running an earlier version of OS X do not need to install this update.     Download
  • MultiMix USB 2.0 - Macintosh Drivers [v2.0.2]
    This release adds support for Mac OS X 10.7 Lion.     Download
  • MultiMix USB 2.0 - Macintosh Drivers [v1.6.6]
    This update adds compatibility with Mac OS 10.5.6. Users who are running earlier versions of the Mac OS do not need to install this update.    Download
  • MultiMix USB 2.0 - Macintosh Drivers [v1.5.0]
    PowerPC & Intel Mac compatible. Compatible with OS X 10.4 "Tiger" and 10.5 "Leopard"     Download

Images

Images

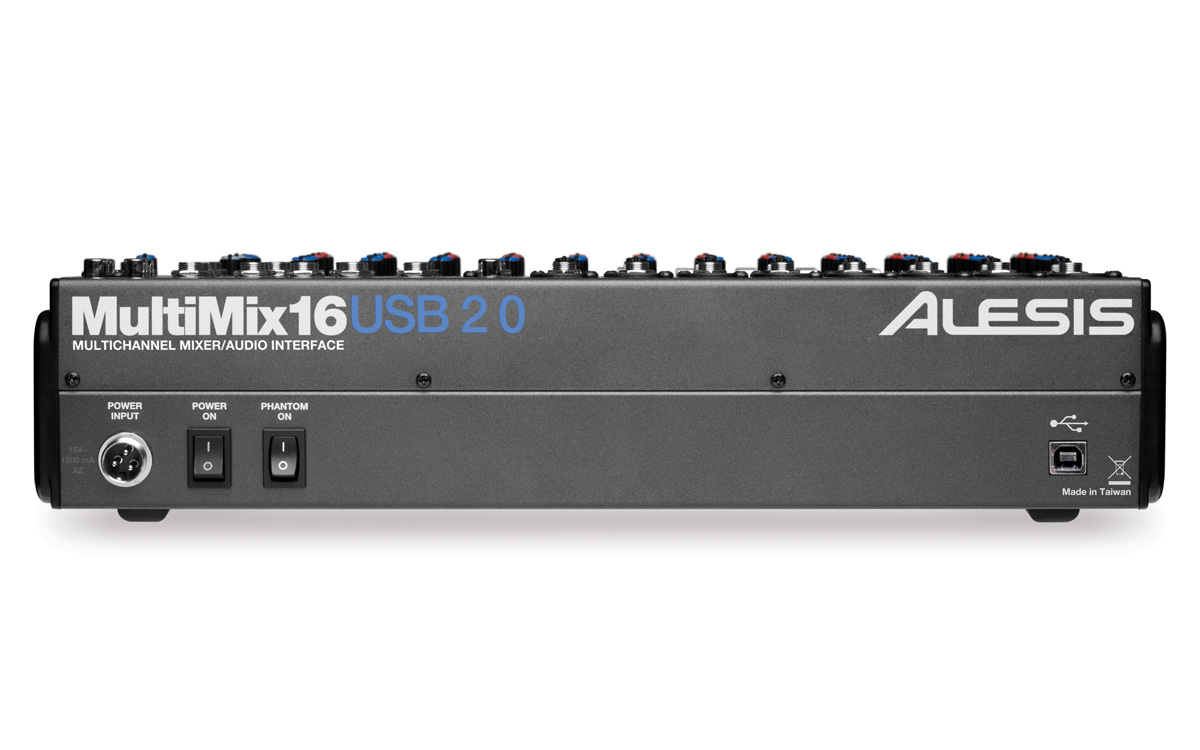

  • product image

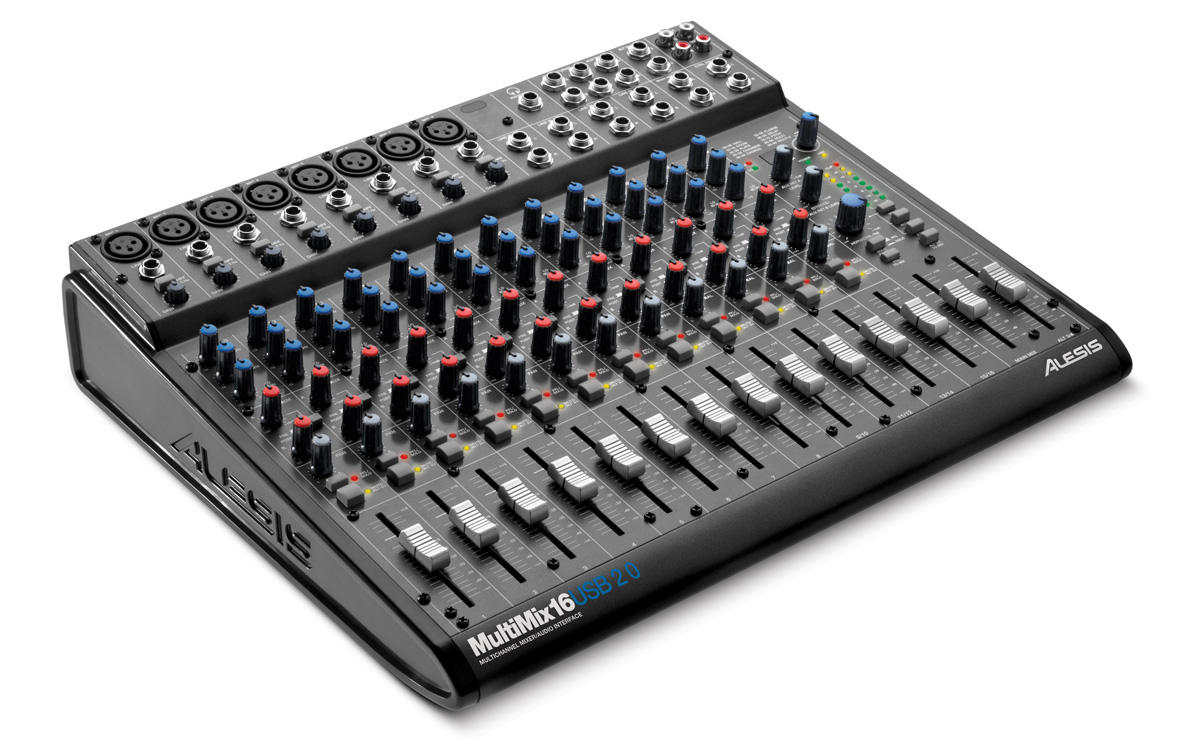

  • product image
